The Lotus 25 And 33 Legacy Each Car Each Grand Prix

[Chris Wright]

Jim Clark's Lotus 25 and 33's by the numbers

Lotus 25, R1 1962
25-R1 1st Belgian GP, 1962, driver Jim Clark. Written Off by Trevor Taylor, French GP, Rouen 8/7/62.

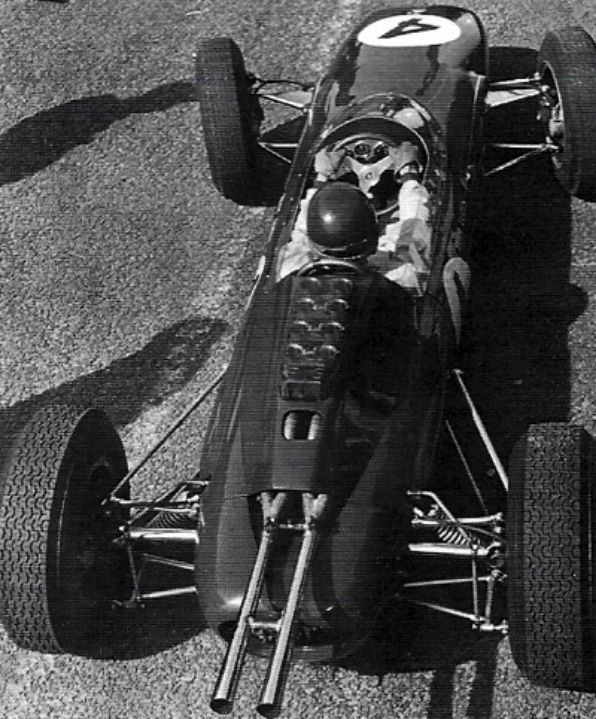

R1 Dutch G.P. DNF

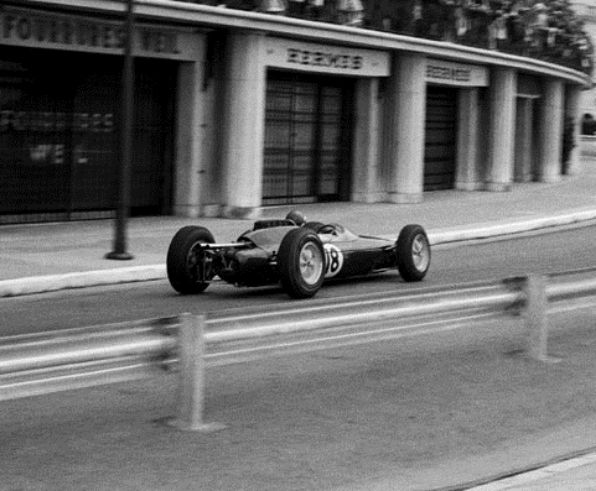

R1 Monaco G.P. DNF Clutch

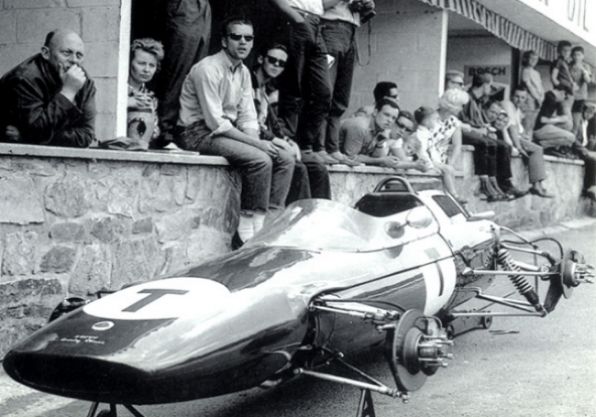

R1 Practice before the Belgian G.P. NOTE DIFFERENT COWL AND TAIL CONE ATTACHED

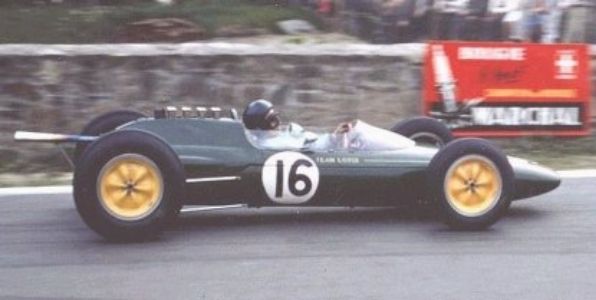

R1 Belgian G.P. Finished 1st





Lotus 25, R2 1962
25-R2 1st British GP, Mexican GP, Oulton Gold Cup, 1962, driver Jim Clark. 1st Natal GP, 1962, driver Trevor Taylor. Written Off by Trevor Taylor, Mediterranean GP, Enna Pergusa 18/8/63.

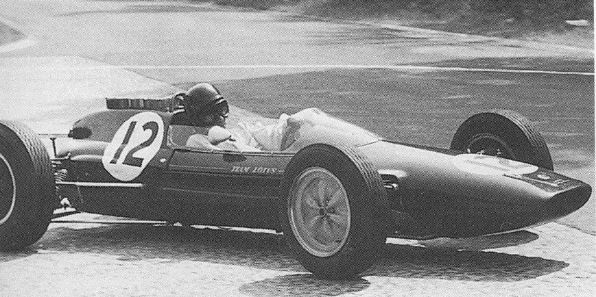

R2 French G.P. DNF Front Suspension


R2 British G.P. Finished 1st


R2 German G.P. Finished 4th





Lotus 25, R3 1962
25-R3 1st United States GP, Rand GP 1962, and Karlskoga Kannon-loppet, 1963, driver Jim Clark. Sold to Parnell, crashed Mexican GP practice 23/10/66 - subsequent history unknown - possibly chassis owned by Climax engine service company in UK.

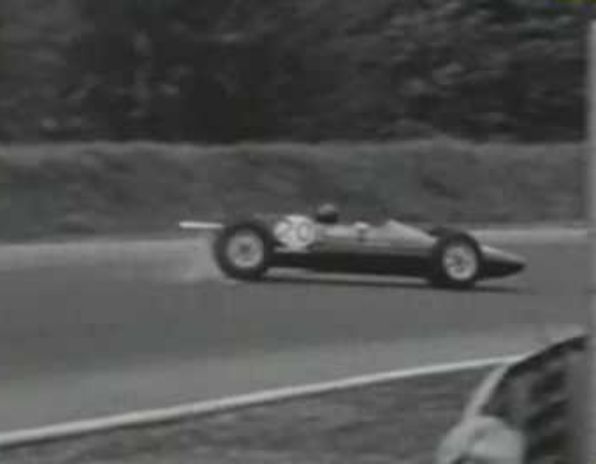

R3 Italian G.P. DNF Transmission

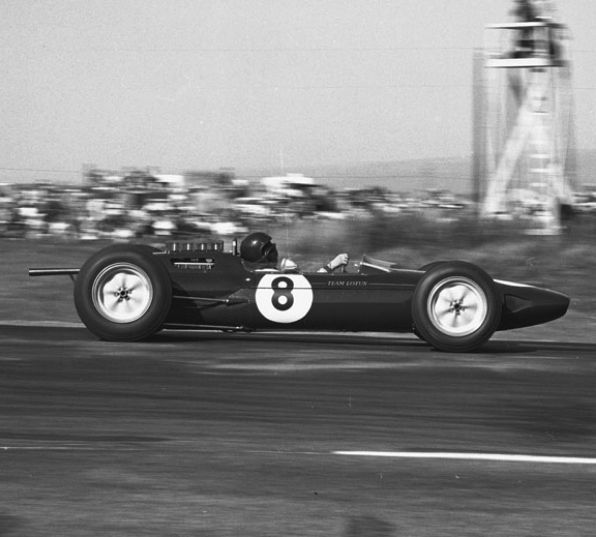

R3 USA G.P. Finished 1st





Lotus 25, R5 1962
25-R5 1st Pau, Imola, Silverstone International Trophy, 1963, driver Jim Clark. Written off by Trevor Taylor, Belgian GP in practice, 9/6/63. Car possibly rebuilt.

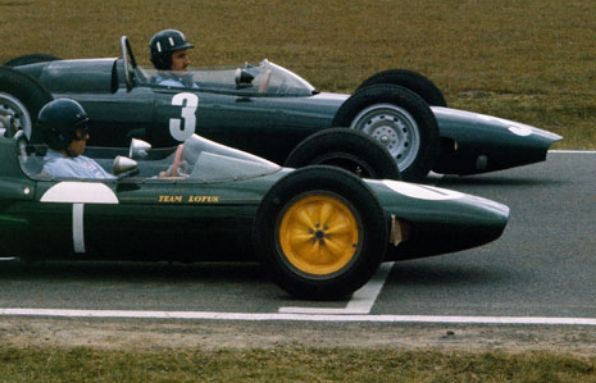

R5 South Africa G.P. DNF Oil Leak





Lotus 25, R4 1963
25-R4 1st Belgian GP, Dutch GP, French GP, British GP, Italian GP, Mexican GP, South African GP, Oulton Park Gold Cup, 1963, driver Jim Clark. Sold to Parnell, Written Off by Richard Attwood, Belgian GP, 13/8/65. Remains used to build R13.

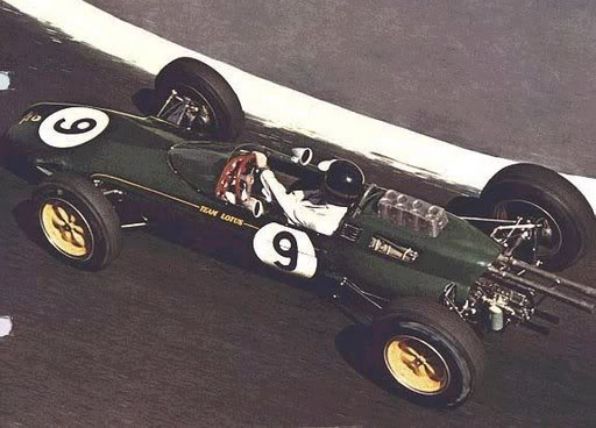

R4 Monaco G.P. DNF Gearbox

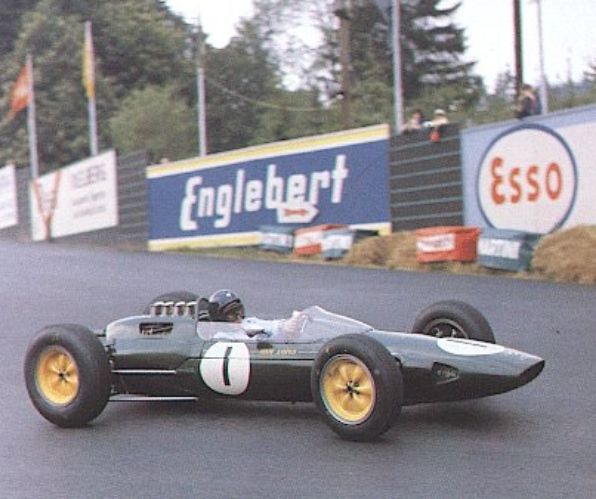

R4 Belgian G.P. Finished 1st

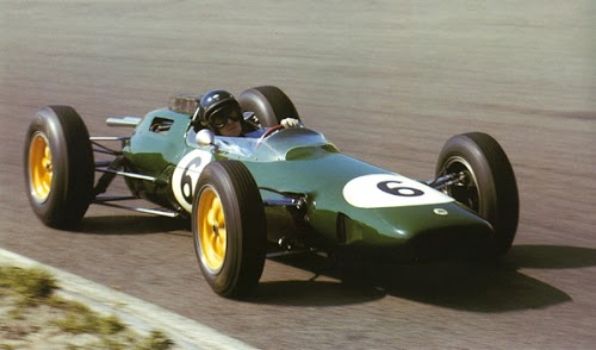

R4 Dutch G.P. Finished 1st NOTE INTRODUCTION OF VENTED WINDSCREEN


FLYING STONES WERE PERCEIVED TO BE A DANGER AT REIMS, SO LOTUS REVERTED BACK TO THE
STANDARD SCREEN FOR THIS RACE, THERE WAS ALWAYS A RISK OF DEBRIS FINDING IT'S WAY INTO THE 'JET"
R4 French G.P. Finished 1st

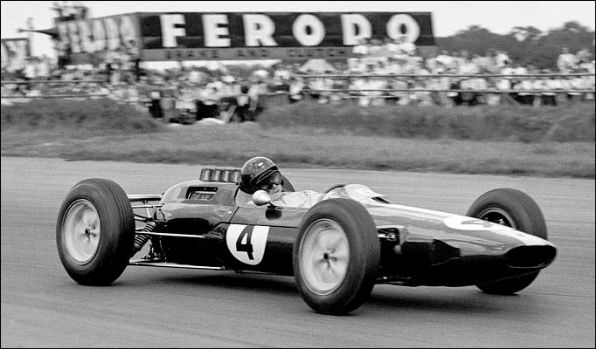

R4 British G.P. Finished 1st NOTE CHANGE IN LIVERY, INTRODUCTION OF THE YELLOW STRIPE

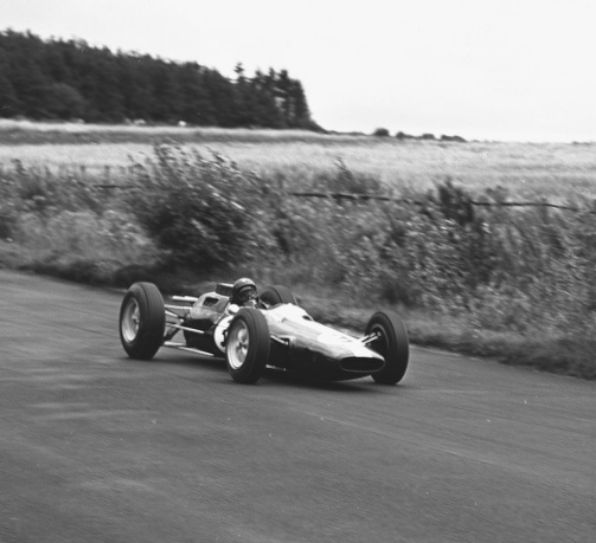

R4 German G.P. Finished 2nd


NOTE UNIQUE WINDSCREEN, AN ORIGINAL SCREEN WITH A SMALL SLOT CUT INTO THE LEADING EDGE

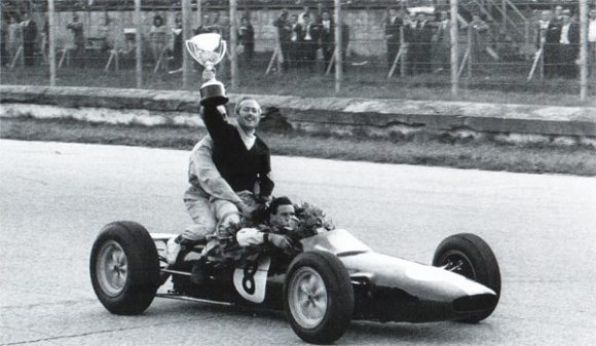

R4 Italian G.P. Finished 1st


R4 USA G.P. Finished 3rd

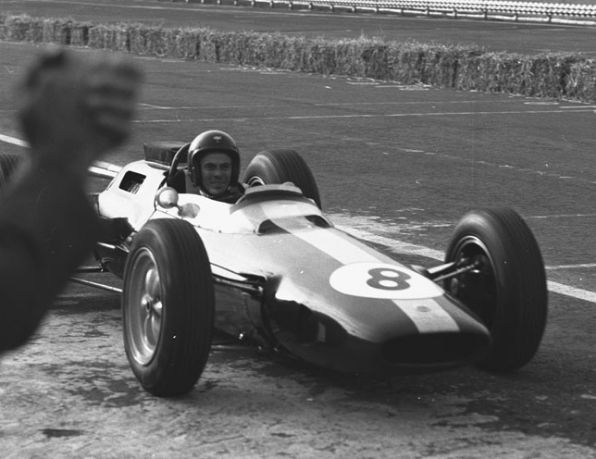

R4 Mexico G.P. Finished 1st

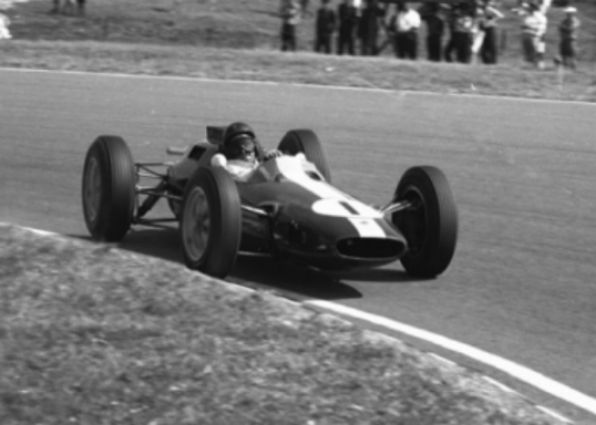

R4 South Africa G.P.  Finished 1st





Lotus 25, R6 1964
25-R6 1st Goodwood, Dutch GP, Belgian GP, British GP, 1964; 1st Goodwood, French GP, 1965, driver Jim Clark. Sold to Joakim Bonnier 1966, then to MGM for 'Grand Prix' film. Last race South African GP 1/1/66 Now an exhibit in an art gallery.

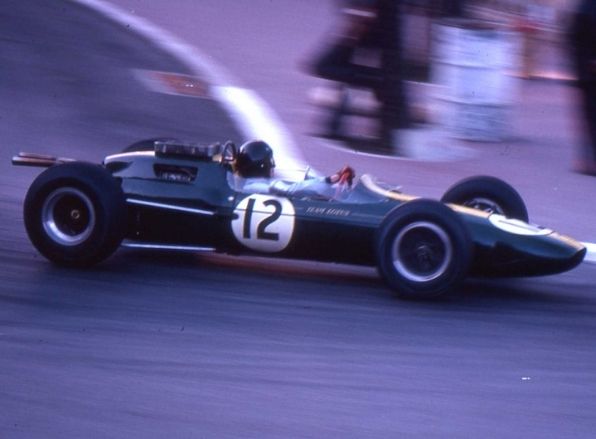

R6 Monaco G.P. Finished 4th NOTE THIS CAR IS NOW A 25B HIGH MOUNTED SUSPENSION
AND 13" WHEELS

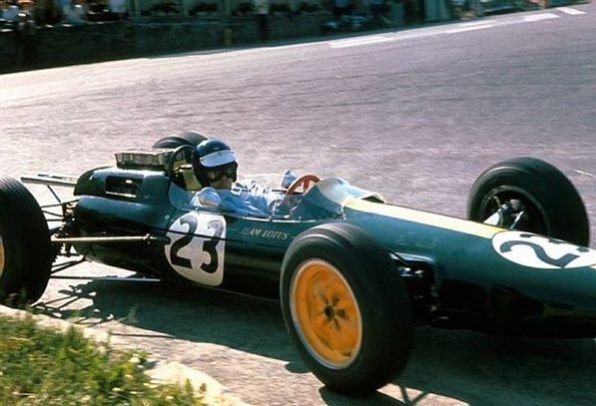

R6 Belgian G.P. Finished 1st NOTE: JIM CLARK TOOK 2 CARS WITH HIM TO SPA, R6 (PICTURED ABOVE)
AND R8 A NEW 33 REBUILT AFTER HIS CRASH AT THE AINTREE INTERNATIONAL 200.
HE PREFERED R6 AND RACED IT REVERTED BACK TO 25 CONFIGURATION WITH 15" WHEELS,
AND THE TOP RADIUS RODS IN THEIR LOWER LOCATION POINT ON THE REAR HUBS

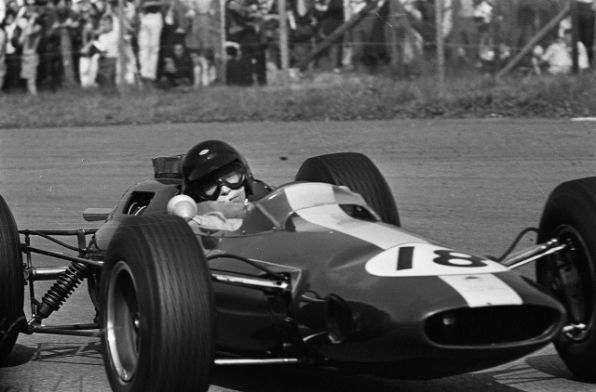

R6 Dutch G.P. Finished 1st NOTE R6 HAS REGAINED 25B CONFIGURATION WITH HIGH MOUNTED
SUSPENSION, 13" WOBBLY WEB WHEELS ON THE FRONT, BUT 13" LOTUS MAGS ON THE REAR

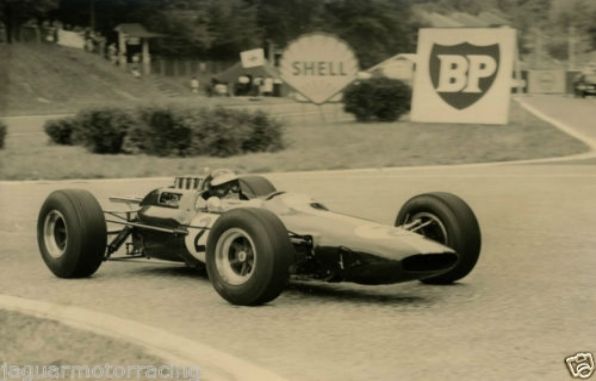

R6 French G.P. DNF Engine NOTE THIS CAR IS NOW A 25B HIGH MOUNTED SUSPENSION AND
13" LOTUS MAGNESIUM 6 SPOKE ALLOYS

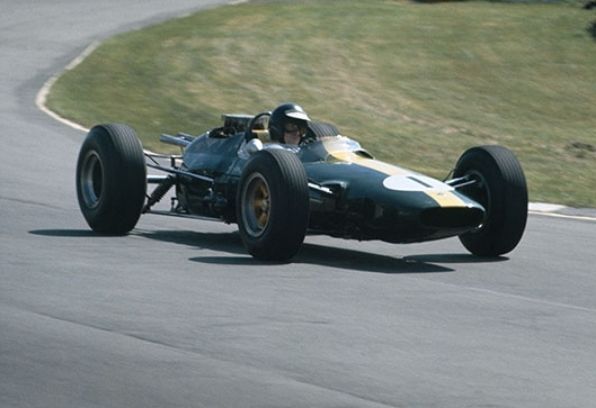

R6 British G.P. Finished 1st NOTE THIS CAR IS NOW A 25B HIGH MOUNTED SUSPENSION AND
13" LOTUS MAGNESIUM 6 SPOKE ALLOYS AND NOW SPORTS A REVISED ENGINE COVER


R6 Italy G.P. DNF Engine
NOTE THE ALL ENVELOPING MESH COVERING THE INTAKES RATHER THAN THE USUAL LOTUS DESIGN



R6 U.S.A. G.P. DNF Injection



Lotus 33, R9 1964
33-R9 1st Dutch GP, 1965, driver Jim Clark. Sold to Joakim Bonnier 1966 - to MGM - crashed at Enna Pergusa now an exibit in a museum picture below.

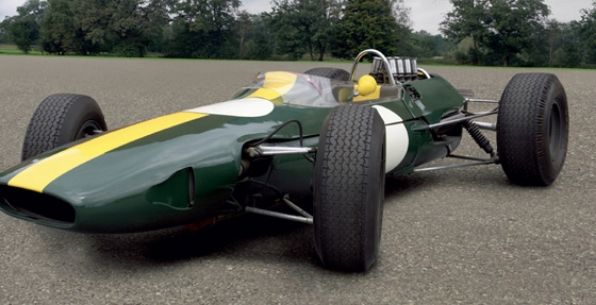

1964 German G.P. DNF CAR AS IT EXISTS NOW

R9 1964 Austria G.P. DNF Drive shafts NOTE THIS CAR IS R9, NOW DESIGNATED AS A LOTUS 33


R9 1964 Mexican G.P. DNF Oil Leak

Lotus 25/33, R6 1965


R6 1965 French G.P. Finished 1st




Lotus 33, R9 1965


R9 1965 Dutch G.P. Finished 1st




Lotus 33, R10 1965
R10 was written off by Jim Clark at the 1965 Race of Champions at Brands Hatch, but was rebuilt from the remains and is currently for sale by Robs Lamplough. It was last seen in the Glover Trophy in '09.


R10 1965 South African G.P. Finished 1st



Lotus 33, R11 1965
R11 went to the US and ran in F5000, returned to the UK and is now in (very) private hands.

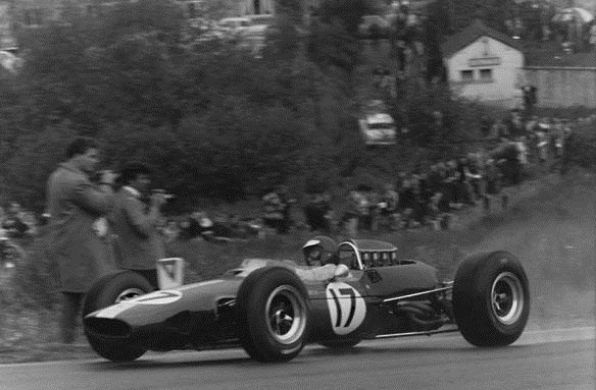

R11 1965 Belgian G.P. Finished 1st

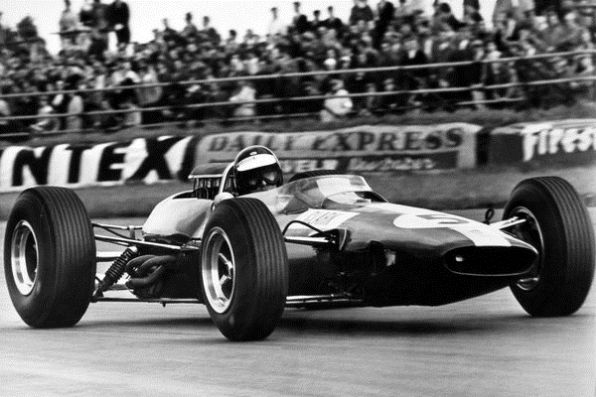

R11 1965 British G.P. Finished 1st

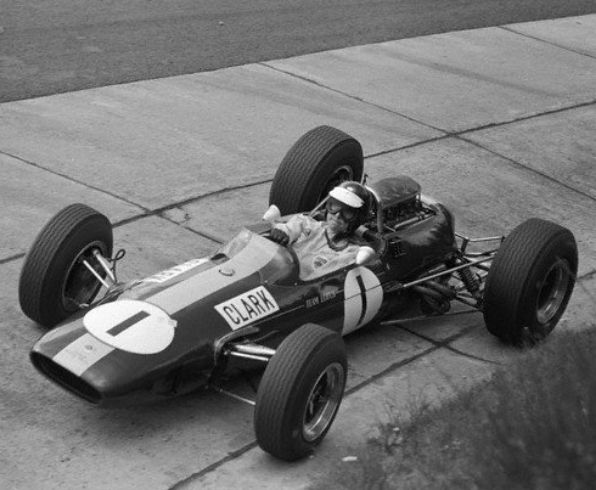

R11 1965 German G.P. Finished 1st

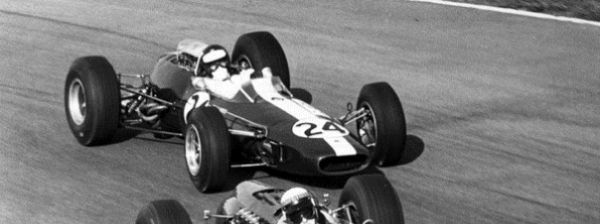

R11 1965 Italian G.P. DNF Fuel pump


R11 1965 U.S. G.P. DNF Engine piston


R11 1965 Mexican G.P. DNF Engine




Lotus 33, R11 1966 2-litre Climax FWMV V8

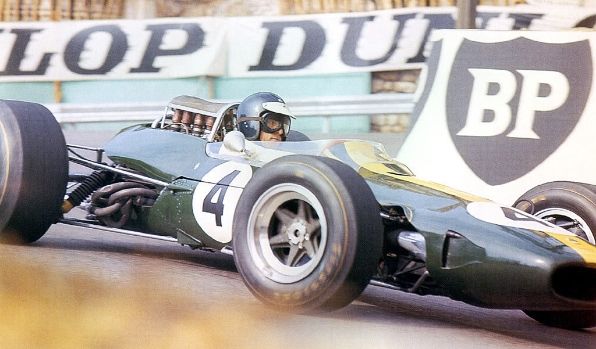

R-11 1966 Monaco G.P. DNF

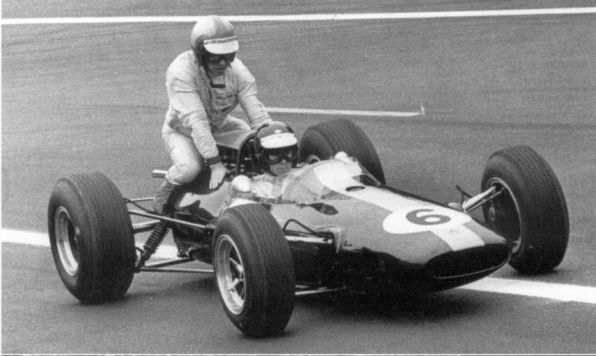

R-11 1966 Belgian G.P. DNF NOTE MESSING AROUND DURING THE MAKING OF "GRAND PRIX"




Lotus 33, R14 1966 2-litre Climax FWMV V8

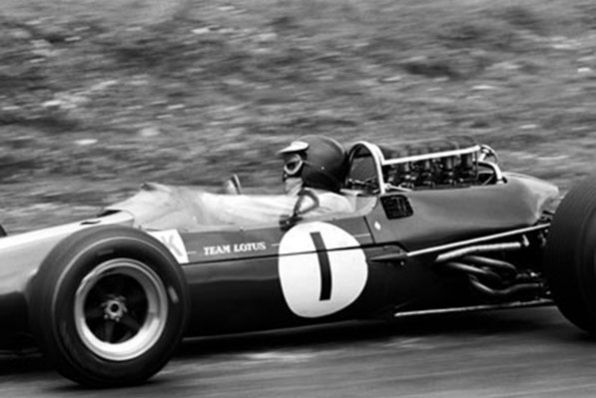

R-14 1966 British G.P. Finished 4th


R-14 1866 Dutch G.P. Finished 3rd

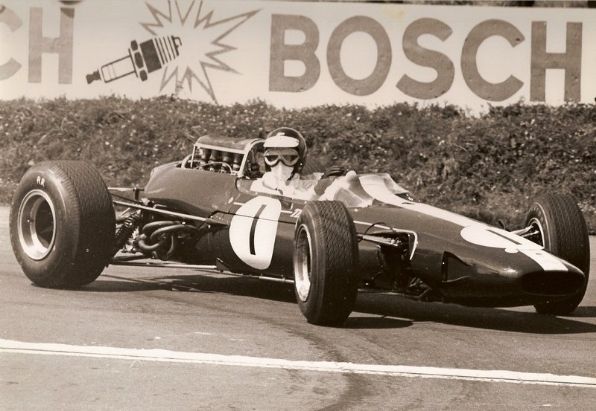

R14 1966 German G.P. DNF



Lotus 33, R14 1967 2-litre Climax FWMV V8

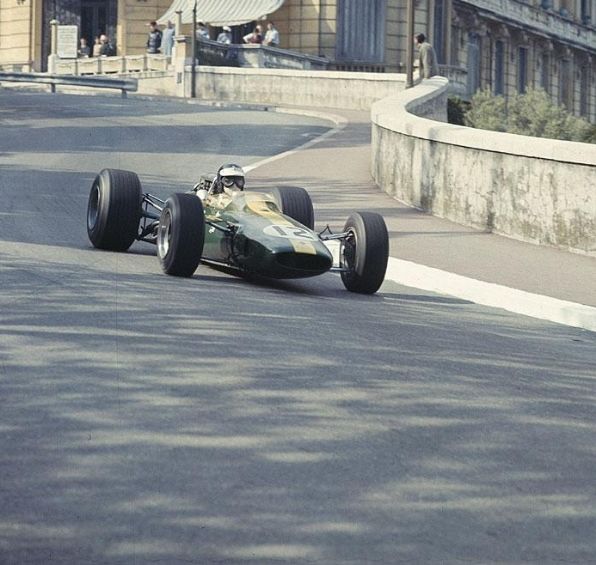

R14 1967 Monaco G.P. DNF THE LAST G.P. RACE BY A LOTUS 25/33 DRIVEN BY JIM CLARK





Lotus 33, R14 1967 2-litre Climax FWMV V8


R14 entered in the Tasman Series
NOTE 15" REAR HALIBRAND WHEELS

New Zealand GP Pukekohe - 7 Jan 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 2nd
Levin GP Levin - 14 Jan 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 1st
Lady Wigram Trophy Wigram - 21 Jan 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 1st

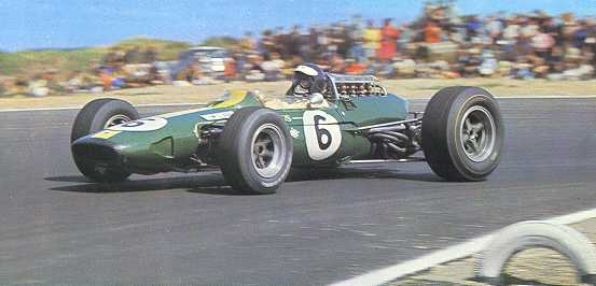

Teretonga International Teretonga Park - 28 Jan 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 1st
Lakeside "99" Lakeside - 12 Feb 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 1st
Australian GP Warwick Farm - 19 Feb 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 2nd
Sandown Park Cup Sandown Park - 26 Feb 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 1st
South Pacific Trophy Longford - 5 Mar 1967 2-litre Lotus 33 R14 - Climax FWMV V8 Jim Clark 2nd

[Mark Huber]

Chris,

Check out the "Look Inside" feature on this book--"Lotus 25/33 by John Tipler. Appendix Two is there (well some of it not all.. blast it) and this appendix details each Lotus 25 and 33 chassis by race through the years.

www.amazon.com/Lotus-25-33-John-Tipler/dp/0750925949/ref=sr_1_1?ie=UTF8&qid=1389378311&sr=8-1&keywords=lotus+25+33#reader_0750925949


Doug Nye's book "Theme Lotus" also has a complete listing of the Lotus 25 and 33 cars by race as an appendix.

www.amazon.com/Theme-Lotus-1956-86-Chapman-Ducarouge/dp/0947981098/ref=sr_1_1?s=books&ie=UTF8&qid=1389378588&sr=1-1&keywords=theme+lotus


You can use either of those as references to do your picture hunt. I was going to send you a picture of R4, but I think you'll find all you need.

[Chris Wright]

OK I think I've finish the Lotus 25 section, any inaccuracies, comments?

[David Lawson]

I haven't checked any of my references at the moment but a couple of comments off the top of my head.

The first picture of R1 with the T insignia isn't a test session it is from practice at the Belgium GP.

The aero screen wasn't introduced at the Britsh GP in 63, it was a bit earlier in the season as per the picture from the Dutch GP.

The screen at Monza '63 was a unique item being an original 25 screen with a small slot cut at the front rather than using the full aero screen.

The picture captioned as USA '63 looks like Monza to me despite the Stars and Stripes flag.

I think they ran a 25 rather than a 25B at Spa '64

Note the all enveloping mesh covering the engine intakes in the '64 Italian GP picture instead of the usual Lotus design.

David

[Chris Wright]

Jan 12, 2014 2:46:30 GMT -5 David Lawson said:

I haven't checked any of my references at the moment but a couple of comments off the top of my head.

The first picture of R1 with the T insignia isn't a test session it is from practice at the Belgium GP.

The aero screen wasn't introduced at the Britsh GP in 63, it was a bit earlier in the season as per the picture from the Dutch GP.

The screen at Monza '63 was a unique item being an original 25 screen with a small slot cut at the front rather than using the full aero screen.

The picture captioned as USA '63 looks like Monza to me despite the Stars and Stripes flag.

I think they ran a 25 rather than a 25B at Spa '64

Note the all enveloping mesh covering the engine intakes in the '64 Italian GP picture instead of the usual Lotus design.

David

Thanks David I will correct as necessary, thank you very much. I did notice however that the car on the Forum Header is the 1964 Spa car, are you sure it's not a 25b? notice 13" wheels and high mounted rear suspension points.

[David Lawson]

Chris

The header picture is from the Dutch GP when the car ran with 13" wheels on the rear and obviously with the 25B suspension.

For Spa Lotus took two Lotus 25s and one 33 (the chassis repaired after the crash at the Aintree 200). Clark practised both types but didn't like the 33 so drove his Dutch winning car converted back to 25 suspension and 15" wheels. I checked this information from Denis Jenkinson's race report in MotorSport magazine July 1964.

If you look at the photo Mark posted of Clark at La Source hairpin the top radius rod is in the lower location point at the rear hub as per 25 suspension. When you look at the photo of Clark sitting on the exhausts at the end of the race you can see the nearside radius rod at the lower location point.

David

[Chris Wright]

Jan 12, 2014 18:06:16 GMT -5 David Lawson said:

Chris

The header picture is from the Dutch GP when the car ran with 13" wheels on the rear and obviously with the 25B suspension.

For Spa Lotus took two Lotus 25s and one 33 (the chassis repaired after the crash at the Aintree 200). Clark practised both types but didn't like the 33 so drove his Dutch winning car converted back to 25 suspension and 15" wheels. I checked this information from Denis Jenkinson's race report in MotorSport magazine July 1964.

If you look at the photo Mark posted of Clark at La Source hairpin the top radius rod is in the lower location point at the rear hub as per 25 suspension. When you look at the photo of Clark sitting on the exhausts at the end of the race you can see the nearside radius rod at the lower location point.

David

Thankyou David duly noted and corrections made.

Chris

[David Lawson]

I know this particular thread isn't a general discussion one and is about adding information for each chassis but....

Just by coincidence I have reached the part of Cedric Selzer's excellent book where he describes the conversion of the existing Lotus 25s into 25Bs in the early part of 1964. I won't go into detail as Mark has ordered the book and I don't want to spoil it for him but it was a very complex conversion with the first one taking several days in the factory and involving a lot of "bodge and fit" with files and hacksaws and on a couple of occasions Chapman ordered a conversion at the track during a grand prix weekend which involved an all day job and more bodge and fit.

So different from today with the aircraft standard construction and complete corners of cars pre-assembled just in case they're needed.

David

[MMV]

R8 is owned by Moderna Museet in Stockholm (Museum of Modern Art)
sis.modernamuseet.se/sv/view/objects/asitem/search$0040/0/primaryMaker-asc?t:state:flow=614a31ef-a6e5-4b16-bdc6-1b2993499cdf





IMAGE ADDED BY ADMIN
